🔧 Auto Diagnostic Tool Repair Case Study: Restoring a Mechanic’s Most Important Device

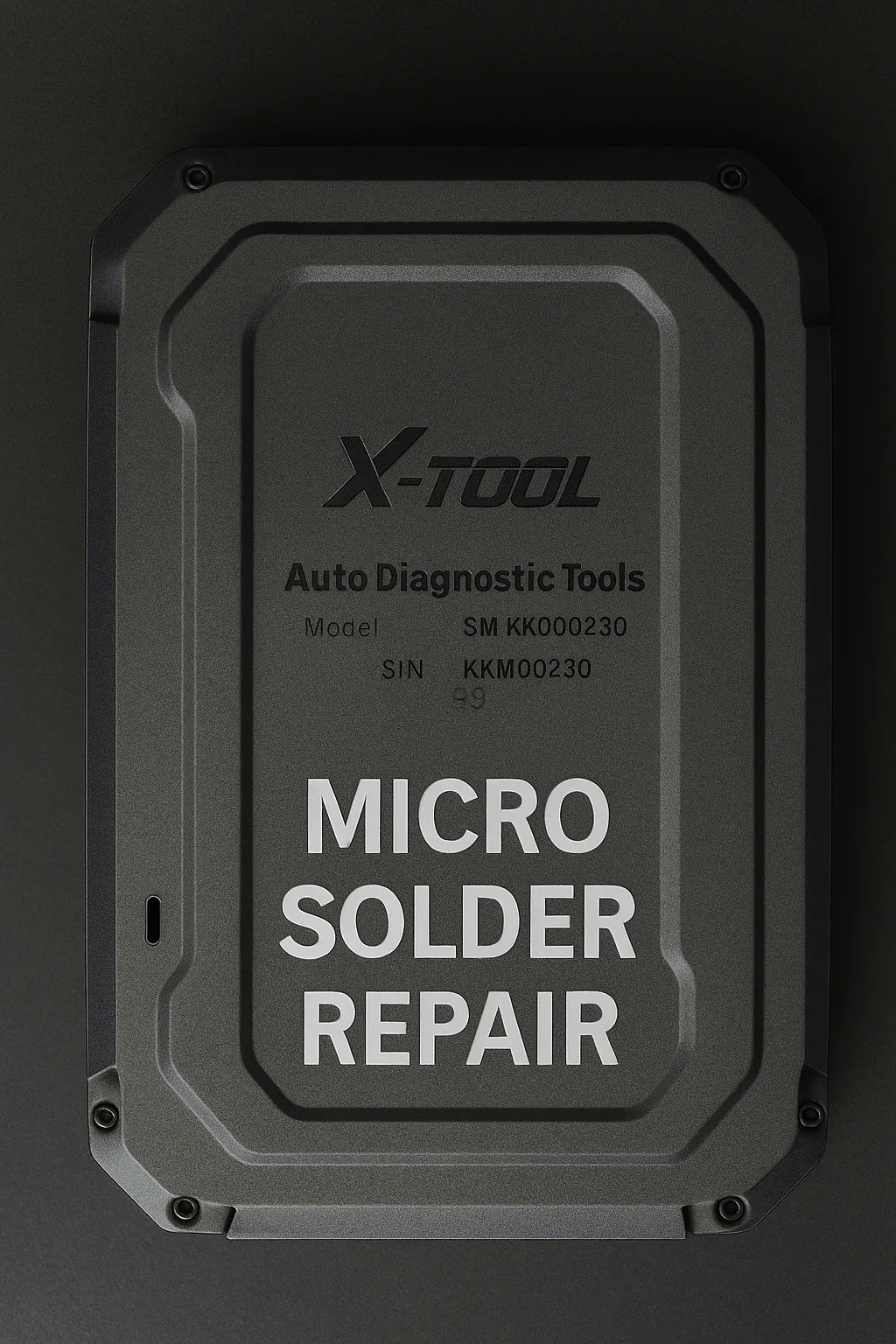

Model XTOOL X100PAD

By Cellular Freedom – Hooksett, NH

When most people think about electronic repairs, they think of phones and tablets — but for auto mechanics, one of the most critical devices in the shop is the auto diagnostic tool. These rugged tablets are used daily for scanning vehicles, programming modules, reading live data, and keeping repair workflows moving.

At Cellular Freedom, we specialize not only in traditional electronics but also in board-level repairs for advanced diagnostic equipment. This case study shows how our micro soldering expertise brought a “dead” diagnostic tool back to life when others said it was unrepairable.

🚗 The Problem: A Shop’s Main Diagnostic Tool Suddenly Stopped Working Model XTOOL X100PAD

A local auto shop in Hooksett, NH brought us their primary XTool diagnostic scanner after it took a fall from a workbench. The device would no longer charge, power on, or connect during vehicle scans.

This left their mechanics unable to perform full diagnostics — costing time, slowing workflow, and putting cars behind schedule. The shop needed a fast and reliable repair, and they needed it done right the first time.

🔍 Initial Inspection & Diagnosing the Failure

After opening the unit, we discovered several critical issues:

✔️ Broken Charging Port

Frequent plugging and shop vibrations caused the charging port to break loose from the board and damage the solder pads beneath it.

✔️ Damaged Power Management IC (PMIC)

Impact from the drop caused a short inside the power management chip, preventing the device from receiving or regulating power.

✔️ Cracked Display Layer

The screen had micro-fractures, leaving it completely unresponsive.

✔️ Degraded Battery

The internal battery was swollen due to age and heat exposure and could no longer hold a proper charge.

This is exactly the kind of situation where micro solder repair and advanced board diagnostics make the difference.

🛠️ The Repair: Micro Soldering + Board-Level Component Replacement

1. Rebuilding the Charging Port Area

The original port was removed, the damaged pads were reconstructed with jumper wiring, and a new heavy-duty charging port was soldered in place to provide long-term durability.

2. Replacing the Power Management IC

Using precision micro soldering tools under a microscope, we removed the shorted PMIC and installed a new one to restore proper voltage flow.

3. Installing a New Screen

The cracked display was replaced with a fresh, high-brightness screen to ensure the unit performed like new.

4. Battery Replacement

A new high-capacity battery was installed, improving overall runtime and reducing future wear on the charging circuit.

5. Full Stress Test & Calibration

We ran a full burn-in diagnostic cycle, ensuring:

• stable power delivery

• accurate touchscreen response

• error-free communication with vehicles

• reliable charging and power-on behavior

✅ The Outcome: Back to Work the Same Day

The auto diagnostic unit was successfully restored, performing better than it had in years. The shop picked it up the same day and immediately returned it to service — saving them thousands compared to replacing the device.

They now have a fully functioning tool with:

• strong, reinforced charging port

• new battery

• calibrated display

• stable power management

• longer overall lifespan

💡 Why Mechanics Trust Cellular Freedom

At Cellular Freedom in Hooksett, NH, we handle repairs that most shops don’t have the equipment or skillset to attempt, including:

• Micro solder repair

• Motherboard and circuit board repair

• Charging port replacements

• Screen replacements

• Battery replacements

• Water damage treatment

• Diagnostic tool repairs for XTool, Launch, Autel, Snap-On, and more

With over 20 years of experience and advanced micro soldering equipment, we’ve become the go-to repair center for electronics that auto shops rely on.

📞 Need Your Diagnostic Tool Repaired?

Bring it to Cellular Freedom, 1330 Hooksett Rd, Hooksett NH, or contact us anytime.
We repair what most shops can’t — and we stand behind our work.
